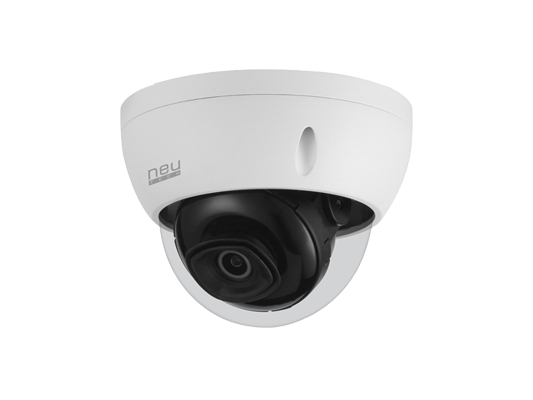

IDP-1431F
กล้องไอพีทรงโดม 4 ล้านพิกเซล
คุณลักษณะ

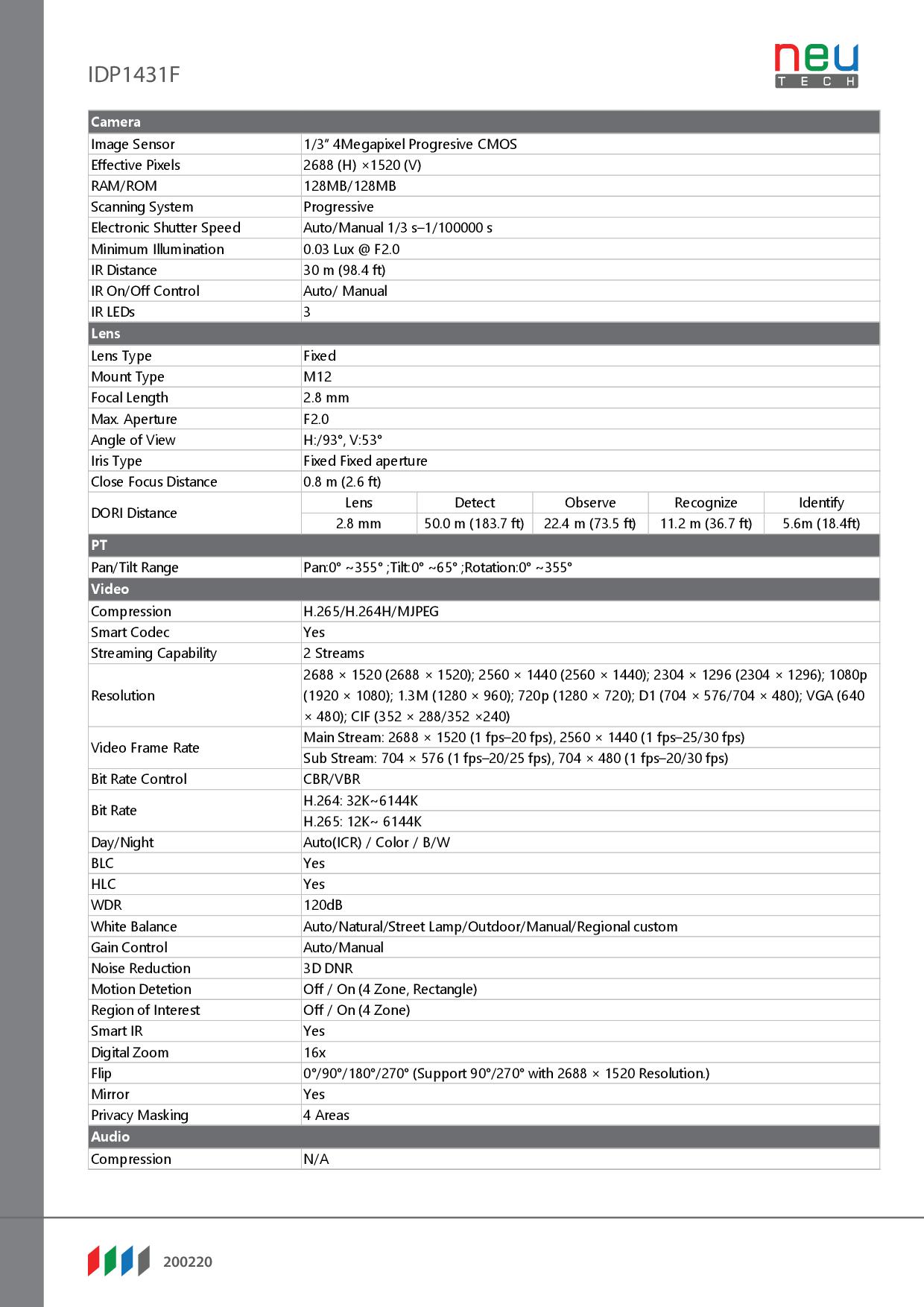

| Camera | |||||
| Image Sensor | 1/3” 4Megapixel Progresive CMOS | ||||
| Effective Pixels | 2688 (H) ×1520 (V) | ||||
| RAM/ROM | 128MB/128MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
| Minimum Illumination | 0.03 Lux @ F2.0 | ||||
| IR Distance | 30 m (98.4 ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 3 | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Max. Aperture | F2.0 | ||||
| Angle of View | H:/93°, V:53° | ||||
| Iris Type | Fixed Fixed aperture | ||||
| Close Focus Distance | 0.8 m (2.6 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 50.0 m (183.7 ft) | 22.4 m (73.5 ft) | 11.2 m (36.7 ft) | 5.6m (18.4ft) | |
| PT | |||||
| Pan/Tilt Range | Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355° | ||||
| Video | |||||
| Compression | H.265/H.264H/MJPEG | ||||
| Smart Codec | Yes | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) | ||||
| Video Frame Rate | Main Stream: 2688 × 1520 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps) | ||||
| Sub Stream: 704 × 576 (1 fps–20/25 fps), 704 × 480 (1 fps–20/30 fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 32K~6144K | ||||
| H.265: 12K~ 6144K | |||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120dB | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Smart IR | Yes | ||||
| Digital Zoom | 16x | ||||
| Flip | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 Resolution.) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 Areas | ||||
| Audio | |||||
| Compression | N/A | ||||

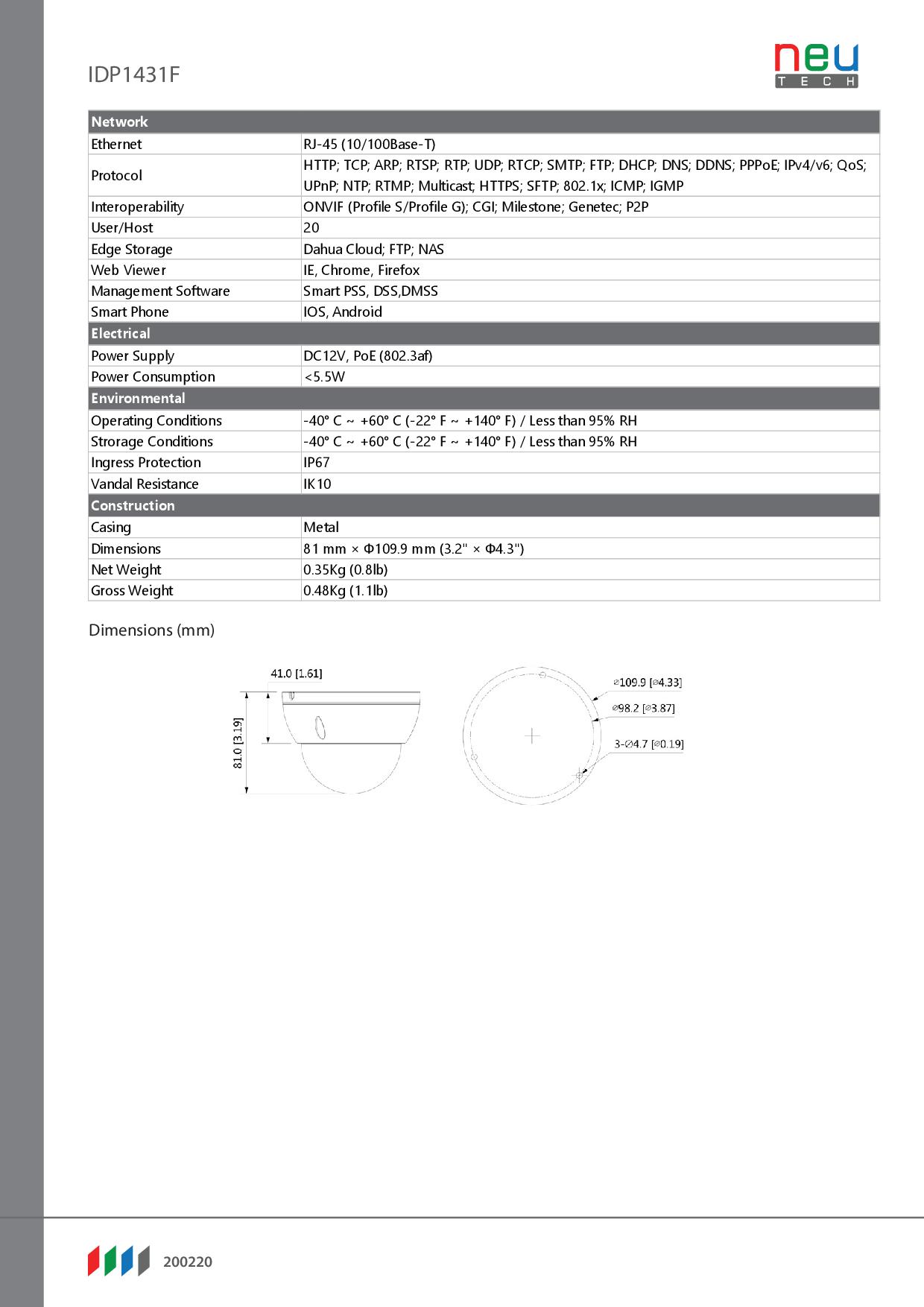

| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP | ||||
| Interoperability | ONVIF (Profile S/Profile G); CGI; Milestone; Genetec; P2P | ||||
| User/Host | 20 | ||||
| Edge Storage | Dahua Cloud; FTP; NAS | ||||
| Web Viewer | IE, Chrome, Firefox | ||||
| Management Software | Smart PSS, DSS,DMSS | ||||
| Smart Phone | IOS, Android | ||||
| Electrical | |||||
| Power Supply | DC12V, PoE (802.3af) | ||||
| Power Consumption | <5.5W | ||||
| Environmental | |||||
| Operating Conditions | -40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
| Strorage Conditions | -40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | 81 mm × Φ109.9 mm (3.2″ × Φ4.3″) | ||||
| Net Weight | 0.35Kg (0.8lb) | ||||
| Gross Weight | 0.48Kg (1.1lb) | ||||
